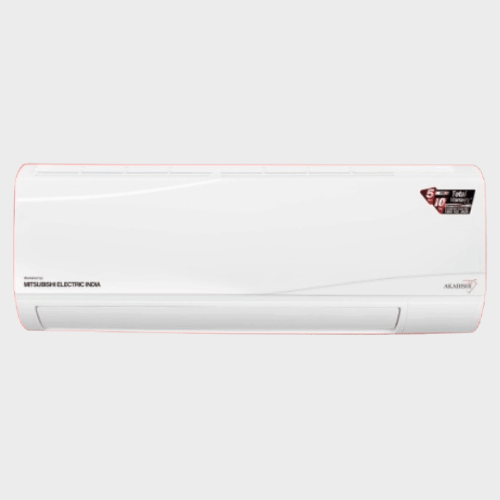

About this Product
- Powerful 1.8 Ton Cooling Capacity: Designed to effectively cool larger rooms (approximately 220 sq ft) in your Bengaluru home, ensuring comfort even during peak summers.
- Durable Copper Condenser Coil: Features a robust copper condenser coil for superior heat transfer efficiency, increased durability, and lower maintenance requirements compared to aluminum coils.
- Eco-Friendly R32 Refrigerant: Utilizes R32 refrigerant, which has a significantly lower environmental impact (Global Warming Potential) than older refrigerants, making it a more responsible choice. .
- Enhanced Air Quality with PM 2.5 Filter: Equipped with a PM 2.5 filter that actively traps microscopic airborne particles, contributing to a cleaner and healthier indoor environment.
- Reliable Non-Inverter Technology with Auto Restart and Blue Fin Coating: As a non-inverter model, it provides consistent cooling, includes an "Auto Restart" function to resume operation after power outages, and boasts a "Blue Fin" anti-corrosion coating on the evaporator for extended lifespan and improved performance
Technical Description
Type (Cooling) | Split Air Conditioner |
---|---|
Indoor Unit | RAM-AE22VG |
Outdoor Unit | RBM-AE22VG |
Performance Parameters | |
Capacity (Tr) | 1.8 Tr |
Star Rating - As Per BEE | 2 Star |
Power Supply | 230 V / 50 Hz / Single Phase |
Rated Capacity | 6200 W |
Rated Power Input | 1758 W |
ISEER | 3.53 |
Rated Current (Amps) | 8.6 |
Indoor Air Flow (CMH) (Turbo/Hi/Mi/Lo) | 1100/1020/820/790 |
Indoor Noise (Low/Mid/Hi/Turbo Speed) | 46/47/49/51 dB |
Refrigerant | R32 |
Dimensions & Weight | |
Indoor Unit Net Dimensions (W x D x H) | 1000 x 230 x 295 mm |
Indoor Unit Net Weight | 11.0 kg |
Outdoor Unit Net Dimensions (W x D x H) | 850 x 310 x 697 mm |
Outdoor Unit Net Weight | 48 kg |
Connecting Pipe (Liquid Side Dia) | 6.35 mm |
Connecting Pipe (Gas Side Dia) | 15.88 mm |
Maximum Pipe Length | 20 m |
Maximum Elevation | 10 m |
Ambient Operating Range | Up to 48°C |
Extra Information
Manufacturer | Mitsubishi Electric(Akabishi) |
---|---|
Country of Origin | India |
Item Weight | 48 kg |
Product Dimensions | 850 x 310 x 697 |
Net Quantity | 1 Count |
Included Components | Indoor Unit, Outdoor Unit, Remote Control, User Manual, Warranty Card. |
Generic Name | AC |
Refund / Returns
This product is not eligible for Return/Refund, Subject to Product Damage
What is in the Box ?
Indoor Unit, Outdoor Unit, Remote Control, User Manual, Warranty Card.
