About Product
- Powerful Cool System
- DC Fan Motor
- Nano Platinum Filter
- Grooved Piping
- Auto Restart
- Self-diagnostic Function
- Wide & Long Airflow
- Auto Vertical Vane
- Auto Horizontal Vane
- Poki Poki Motor
- 100% Copper Heat Exchanger
- Econo Cool-Smart Save
- Electrostatic Anti-allergy Enzyme Filter(Optional)
- Anti-rust
- Dual Barrier coating
Technical Description
|

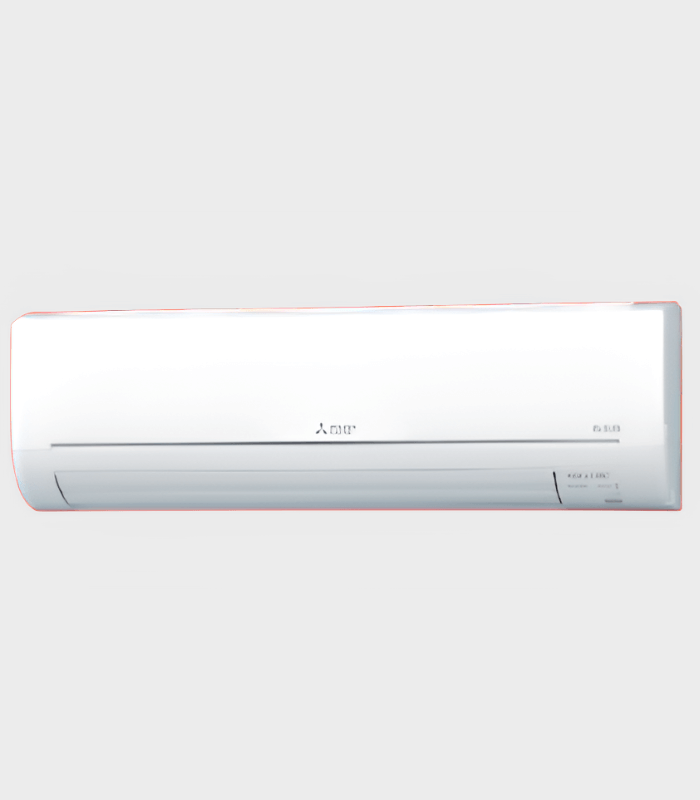

Indoor Unit |
MSY-GN10VF-D1 |
|
Capacity (Tr) |
0.75 Tr |
|
Star Rating - As Per BEE |
4 Star bee rating |
|
Power Supply |
230 V / 50 Hz / Single Phase |
|
Capacity (Rated* Min-Max) |
2.8(1.1-3.4)kW |
|
ISEER |
4.85 |
|
Operating Current Rated(Amps) |
3.8 |
|
Air Volume (CFM) Indoor Unit(Low-Mid-Hi-SHi) |
145/184/255/327/406 |
|
SPL Indoor Unit(Low-Mid-Hi-SHi) dB(A) |
19/24/31/38/44 |
|
Refrigerant |
R32 |
Extra Information
|
Indoor unit |
|
|
Dimensions (H x W x D) |
290x799x232 mm |
|
Weight |
9 kg |
|
Outdoor unit |
|
|
Dimensions (H x W x D) |
550*800*285 mm |
|
Weight |
28.5 kg |
|
Breaker Size (MCB required) |
10 A |
|
Ext.Piping |
|
|
Diameter Liquid |
6.35(1/4) mm (inches) |
|
Diameter Gas |
9.52(3/8) mm (inches) |
|
Max.Length Out-In |
20 m |
|
Max.Height Out-In |
12 m |
|
Country of Origin |
India |
Refund / Returns
This product is not eligible for Return/Refund, Subject to Product Damage
