Description
| Type (Cooling) | Split Air Conditioner (Inverter) |
|---|---|

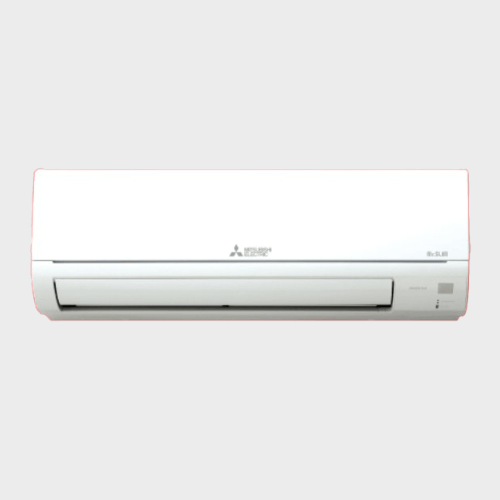

| Indoor Unit Model | MSY-JP18VF |
| Outdoor Unit Model | MUY-JP18VF |
| Performance Parameters | |
| Capacity (Tr) | 1.5 Tr |
| Star Rating – As Per BEE | 2 Star |
| Power Supply | 230 V / 50 Hz / Single Phase |
| Capacity (Rated Min-Max) | 5.2 (1.3-5.3) kW |
| Total Input (Rated Min-Max) | 1.86 (0.31-2.02) kW |
| ISEER | 3.70 |
| Operating Current (A) | 8.5 |
| Air Volume (CFM) Indoor Unit (Silent-Low-Mid-Hi-SHi) | 233/317/417/483/538 |
| Compressor, Refrigerant & Ambient Operations | |
| Sound Level (SPL) Indoor Unit (Silent-Low-Mid-Hi-SHi) | 28/33/40/44/49 dB(A) |
| Refrigerant | R32 |
| Dimensions & Weight | |
| Indoor Unit Dimensions (H x W x D) | 280 x 838 x 228 mm |
| Indoor Unit Weight | 9 kg |
| Outdoor Unit Dimensions (H x W x D) | 550 x 800 x 285 mm |
| Outdoor Unit Weight | 31.5 kg |
| Breaker Size (MCB required) | 10 A |
| External Piping | |
| Diameter Liquid | 6.35 mm (1/4 inches) |
| Diameter Gas | 12.7 mm (1/2 inches) |
| Max. Length Out-In | 20 m |
| Max. Height Out-In | 12 m |
| Manufacturer | MITSUBISHI ELECTRIC INDIA PVT. LTD. |
|---|---|
| Country of Origin | India |
| Item Weight | 41 kg |
| Product Dimensions | 550x800x285 mm |
| Net Quantity | 1 Count |
| Included Components | 1 Indoor Unit, 1 Outdoor Unit, 1 Remote Control, User manual, Warranty Card & 3m Copper wire/ Interconnecting pipe |
| Generic Name | SPLIT AIR – CONDITIONER |
