About Product
- Auto Restart
- Joint Lap DC Motor
- Magnetic Flux Vector Sine Wave Drive
- Heat Caulking Fixing Method
- Reluctant DC Rotary Compressor
- Anti Mold filter
- Micro Particle Catching Filter(Optional Part)
- Electrostatic Anti-allergy Enzyme Filter(Optional)
- High Density Filter(Optional part)
- Auto Fan Speed Mode
- Vertical Vane Swing
- Auto Vane Control(Left & Right, Up & Down)
- Double Horizontal Vane
- 24 Hour On/Off programmable timer
- Fast Cooling Mode
- Sleep Mode
- Grooved Piping
- Guaranteed Operating Range Upto 52C
Technical Description
|
Indoor Unit |

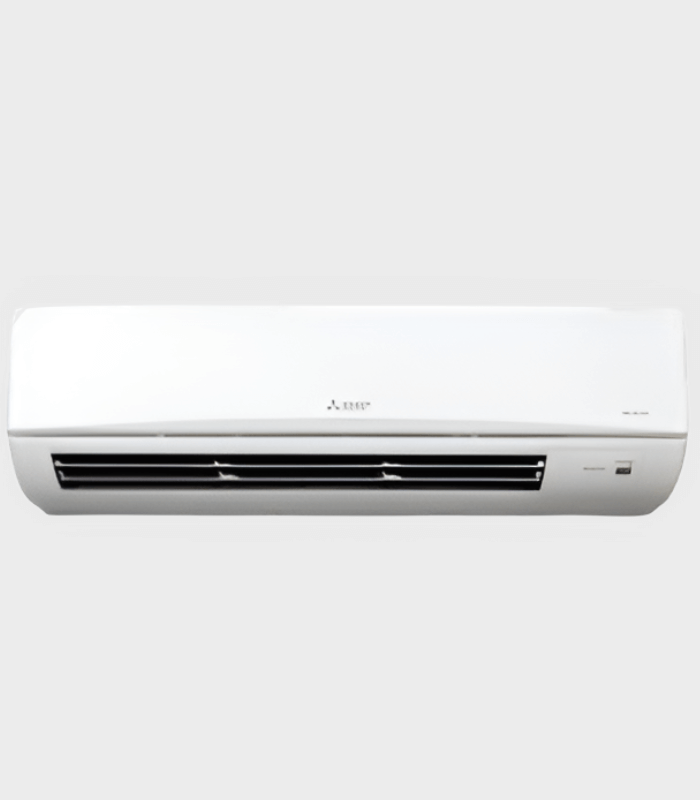

MSY-JR30VF |
|
Capacity (Tr) |
2.5 Tr |
|
Star Rating - As Per BEE |
3 Star bee rating |
|
Power Supply |
230 V / 50 Hz / Single Phase |
|
Capacity (Rated* Min-Max) |
8.2 (2.4-9.2)kW |
|
Total Input (Rated Min-Max) |
2.53 (0.48-3.34)kW |
|
ISEER |
4.36 |
|
Operating Current Rated(Amps) |
11.6 |
|
Air Volume (CFM) Indoor Unit(Low-Mid-Hi-SHi) |
307-413-519-735 |
|
SPL Indoor Unit(Low-Mid-Hi-SHi) dB(A) |
30-38-45-51 |
|
Refrigerant |
R32 |
Extra Information
|
Indoor unit |
|
|
Dimensions (H x W x D) |
325x1100x238 mm |
|
Weight |
15 kg |
|
Outdoor unit |
|
|
Dimensions (H x W x D) |
880x840x330 mm |
|
Weight |
48.5 kg |
|
Breaker Size MCB |
20 A |
|
Ext.Piping |
|
|
Diameter Liquid |
6.35(1/4) mm (inches) |
|
Diameter Gas |
12.7(1/2) mm (inches) |
|
Max.Length Out-In |
30 m |
|
Max.Height Out-In |
15 m |
|
Country of Origin |
India |
Refund / Returns
This product is not eligible for Return/Refund, Subject to Product Damage
