About Product
- Auto Restart
- Joint Lap DC Motor
- Magnetic Flux Vector Sine Wave Drive
- Heat Caulking Fixing Method
- Reluctant DC Rotary Compressor
- Anti Mold filter
- Micro Particle Catching Filter(Optional Part)
- Electrostatic Anti-allergy Enzyme Filter(Optional)
- High Density Filter(Optional part)
- Auto Fan Speed Mode
- Vertical Vane Swing
- Auto Vane Control(Left & Right, Up & Down)
- Double Horizontal Vane
- 24 Hour On/Off programmable timer
- Fast Cooling Mode
- Sleep Mode
- Grooved Piping
- Guaranteed Operating Range Upto 52C
Technical Description
|

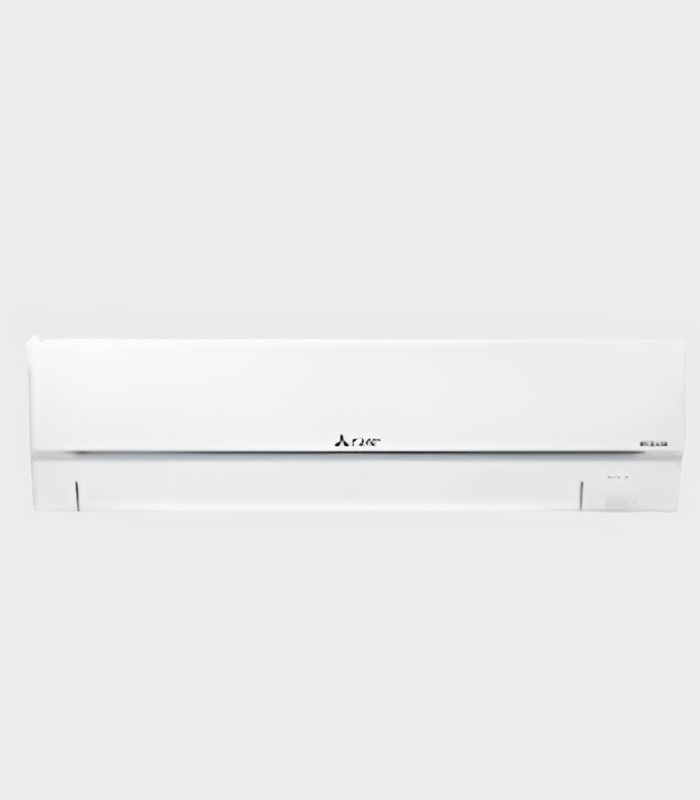

Indoor Unit |
MSY-GR10VF-DA1 |
|
Capacity (Tr) |
0.75 Tr |
|
Star Rating - As Per BEE |
5 Star bee rating |
|
Power Supply |
230 V / 50 Hz / Single Phase |
|
Capacity (Rated* Min-Max) |
2.8(1.1-3.4)kW |
|
Total Input (Rated Min-Max) |
0.76(0.23-1.07)kW |
|
ISEER |
5.00 |
|
Operating Current Rated(Amps) |
3.8 |
|
Air Volume (CFM) Indoor Unit(Low-Mid-Hi-SHi) |
141/187/254/335/403 |
|
SPL Indoor Unit(Low-Mid-Hi-SHi) dB(A) |
18/24/31/38/42 |
|
Refrigerant |
R32 |
Extra Information
|
Indoor unit |
|
|
Dimensions (H x W x D) |
280x838x229 mm |
|
Weight |
10 kg |
|
Outdoor unit |
|
|
Dimensions (H x W x D) |
538x699x249 mm |
|
Weight |
21.5 kg |
|
Ext.Piping |
|
|
Diameter Liquid |
6.35(1/4) mm (inches) |
|
Diameter Gas |
9.52(3/8) mm (inches) |
|
Max.Length Out-In |
20 m |
|
Max.Height Out-In |
12 m |
|
Country of Origin |
India |
