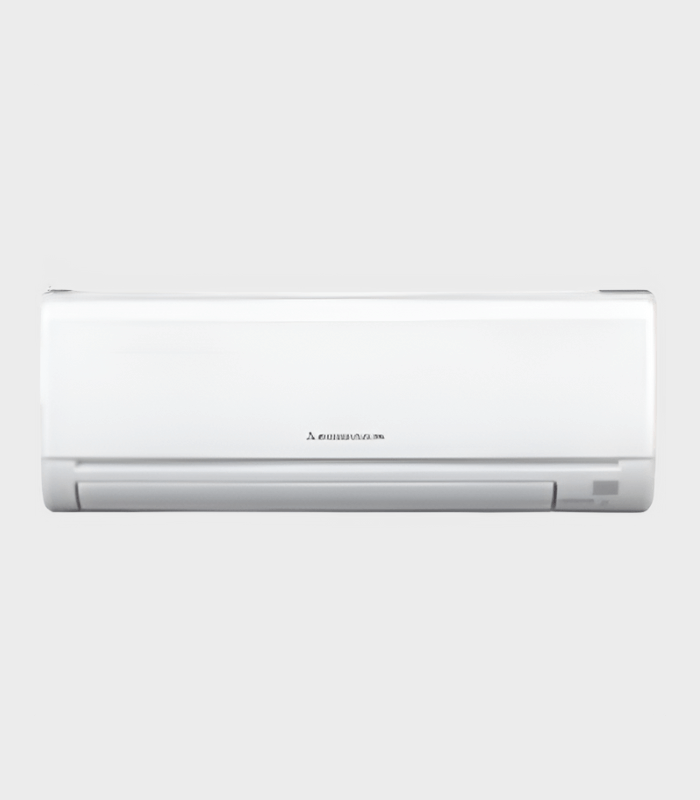

About Product
- Powerful Cool System
- DC Fan Motor
- Nano Platinum Filter
- Grooved Piping
- Auto Restart
- Fuzzy Logic "I Feel"
- Wide & Long Airflow
- Auto Vertical Vane
- Auto Horizontal Vane
- Poki Poki Motor
- 100% Copper Heat Exchanger
- Econo Cool-Smart Save
- Electrostatic Anti-allergy Enzyme Filter(Optional)
- Anti-rust
- Dual Barrier coating
Technical Description
|
Indoor Unit |
MSY-GN26VF-D1 |
|
Capacity (Tr) |
2.2 Tr |
|
Star Rating - As Per BEE |
4 Star bee rating |
|
Power Supply |
230 V / 50 Hz / Single Phase |
|
Capacity (Rated* Min-Max) |
7.6(2.4-9.2)kW |
|
ISEER |
4.79 |
|
Operating Current Rated(Amps) |
8.8 |
|
Air Volume (CFM) Indoor Unit(Low-Mid-Hi-SHi) |
308/378/449/520/734 |
|
SPL Indoor Unit(Low-Mid-Hi-SHi) dB(A) |
30/37/41/45/51 |
|
Refrigerant |
R32 |
Extra Information
|
Indoor unit |
|
|
Dimensions (H x W x D) |
325*1100*238 mm |
|
Weight |
15 kg |
|
Outdoor unit |
|
|
Dimensions (H x W x D) |
880*840*330 mm |
|
Weight |
48.5 kg |
|
Breaker Size (MCB required) |
20 A |
|
Ext.Piping |
|
|
Diameter Liquid |
6.35(1/4) mm (inches) |
|
Diameter Gas |
12.7(1/2) mm (inches) |
|
Max.Length Out-In |
30 m |
|
Max.Height Out-In |
15 m |
|
Country of Origin |
India |
Refund / Returns
This product is not eligible for Return/Refund, Subject to Product Damage
